Beskrivning

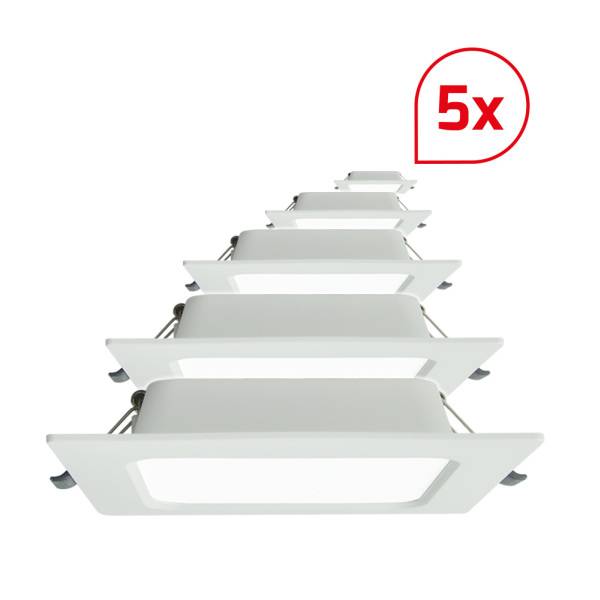

Platt design med inbyggd nätenhet gör att du kan använda Backlight-tekniken även vid svåra monteringsplatser med robust aluminiumkärnkretskort och bra värmehantering brett höljesalt täcker inskuren monteringsöppning plastmantlade metallklämmor ger säkert grepp 5-pack
Platt design med inbyggd nätenhet gör att du kan använda Backlight-tekniken även vid svåra monteringsplatser med robust aluminiumkärnkretskort och bra värmehantering brett höljesalt täcker inskuren monteringsöppning plastmantlade metallklämmor ger säkert grepp 5-pack
- Typ av produkt
- LED-inbyggnadsbelysning
- Energiklass
- n.rel.
- Protection class according to IEC 61140
- II
- Width
- 175
- Outer diameter
- 0
- Housing colour
- White
- Voltage type
- AC
- With movement sensor
- FALSE
- Type of grid
- White
- Type of control gear
- LED operating device current-controlled
- Colour rendering index CRI
- 80-89
- Built-in width
- 150
- Built-in diameter
- 150
- With light sensor
- FALSE
- Suitable for suspended mounting
- FALSE
- Length
- 175
- Height/depth
- 27
- Housing material
- Plastic
- Lamp type
- LED not exchangeable
- Built-in length
- 150
- Suitable for light line configuration
- FALSE
- Suitable for emergency lighting
- FALSE
- Nominal voltage
- 220-240
- Degree of protection (IP)
- IP20
- With light source
- FALSE
- Luminaire with limited surface temperature, sign ”D“ according to EN 60598-2-24
- FALSE
- Covering of the luminaire with thermally insulating material possible
- FALSE
- Suitable for wall mounting
- FALSE
- Suitable for built-in mounting
- TRUE
- With control gear
- TRUE
- Suitable for workplace according to EN 12464-1
- FALSE
- Suitable for surface mounting
- FALSE
- Beam angle
- > 80° – Extreme wide beam
- Colour temperature
- 3000-3000
- Max. system power
- 16
- Rated luminous flux according to IEC 62722-2-1
- 1280
- Colour of light
- White
- With air slots
- FALSE
- Rated life time L80/B10 at 25 °C
- 20000
- Rated ambient temperature according to IEC 62722-2-1
- -20-45
- Dimming 0-10 V
- FALSE
- Dimming 1-10 V
- FALSE
- Dimming DALI
- FALSE
- Dimming DMX
- FALSE
- Dimming potentiometer (integrated)
- FALSE
- Dimming GPRS
- FALSE
- Dimming LineSwitch
- FALSE
- Dimming manufacturer’s proprietary system
- FALSE
- Dimming mains voltage modulation
- FALSE
- Dimming phase cut-off (trailing edge)
- FALSE
- Dimming phase cut-on (leading edge)
- FALSE
- Dimming programmable
- FALSE
- Dimming RF
- FALSE
- Dimming Sine Wave Reduction
- FALSE
- Dimming Touch and Dim
- FALSE
- Dimming Zigbee
- FALSE
- Dimming with push-button
- FALSE
- No dim function
- TRUE
- Dimming depending on control gear
- FALSE
- Dimming DSI
- FALSE
- Suitable for ceiling mounting
- FALSE
- Power factor
- 0.7
