Beskrivning
- Typ av produkt
- Strömstötsrelä
- Typ

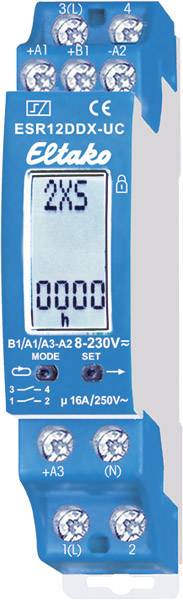

- ESR12DDX-UC
- Anslutning
- Skruv
- Driftspänning
- 230
- Kontakttyp
- 2 NO
- Kontaktmaterial
- Koppar
- Växelspänning (max.)
- 230
- Växelström (max)
- 8
- Max. bryteffekt
- 2000
- Tidsintervallet (min.)
- 0.1
- Tidsintervallet (max.)
- 14400
- Bredd
- 18
- Höjd
- 66
- Djup
- 58
- Mått.
- (B x H x D) 18 x 66 x 58 mm
- Innehåll
- 1
- Tillverkarfärg
- Flerfärgad
- Montageart
- DIN-skena
- Vikt
- 1020
- Nominal current
- 10
- Mounting method
- DIN rail
- Width
- 18
- Function
- Electronic with release delay
- Height
- 66
- Depth
- 58
- Built-in depth
- 58
- Max. starting current
- 10
- Width in number of modular spacings
- 1
- Control voltage 1
- 8-253
- Frequency control voltage 1
- 50-50
- Frequency control voltage 2
- 50-50
- Voltage type (supply voltage)
- AC/DC
- Time range
- 0.1-14400
- Type of electric connection
- Screw connection
- Rated control supply voltage AC 50 Hz
- 230-230
- Rated control supply voltage DC
- 12-12
- Material of contact surface
- Other
- Supply voltage
- 230-230
- Max. switching current (cos phi = 0.6)
- 8
- Max. incandescent lamp load
- 2000
- Max. load fluorescent lamp
- 1000
- Max. load fluorescent lamp (Duo circuit)
- 1000
- Max. load fluorescent lamp (parallel compensated)
- 500
- Voltage type (operating voltage)
- AC
- Rated switch current
- 16
- Number of outputs, undelayed, normally open contact
- 2
- Material contact
- Copper
- Operating voltage AC 50 Hz
- 230-230
- Operating voltage DC
- 8-8
- Number of contacts as normally closed contact
- 0
- Number of contacts as normally open contact
- 2
- Number of contacts as change-over contact
- 0
- Material of contact insert
- Thermoplastic
