Beskrivning

Typ av produkt

Tidsrelä

Typ

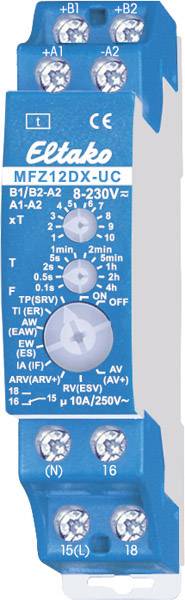

MFZ12DX-UC

Utförande

Multifunktionell

Anslutning

Skruvklämma

Funktioner

Styr- & frånslagsfördröjning

Driftspänning

230

Driftspänning max.

230

Driftspänning

230 V (max)

Kontakttyp

1 switch

Kontaktmaterial

Koppar

Växelspänning (max.)

230

Växelström (max)

10

Max. bryteffekt

2000

Tidsintervallet (min.)

0.1

Tidsintervallet (max.)

40

Bredd

18

Höjd

66

Djup

58

Mått.

(B x H x D) 18 x 66 x 58 mm

Innehåll

1

Vikt

910

Nominal current

10

Mounting method

DIN rail

Width

18

Function

Multi function

Height

66

Depth

58

Built-in height

58

Number of normally open contacts

0

Number of normally closed contacts

0

Max. starting current

10

Width in number of modular spacings

1

Number of changeover switches

1

Control voltage 1

8-230

Frequency control voltage 1

50-50

Voltage type (supply voltage)

AC/DC

Time range

0.1-14400

Type of electric connection

Screw connection

Rated control supply voltage AC 50 Hz

230-230

Rated control supply voltage DC

12-12

Material of contact surface

Other

Supply voltage

8-230

Switch capacity incandescent lamps

2000

Switch capacity fluorescent lamp DUO

1000

Switch capacity fluorescent lamp inductive

1000

Switch capacity fluorescent lamp parallel

500

Voltage type (operating voltage)

AC

Number of outputs, undelayed, normally open contact

1

Material contact

Copper

Operating voltage AC 50 Hz

230-230

Operating voltage DC

8-8

Number of contacts as normally closed contact

0

Number of contacts as normally open contact

0

Material of contact insert

Thermoplastic
