Beskrivning

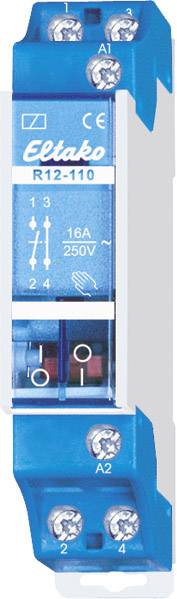

Elektromekanisk kopplingsreläer med handpåläggning och lägesindikator. Inkopplingstid 100% Styreffekt behov. 1,9W Kontaktavstånd: 3mm Provspänning kontakt/kontakt 2000 V och provspänning styr anslutningar/Kontakt 4000V.
Elektromekanisk kopplingsreläer med handpåläggning och lägesindikator. Inkopplingstid 100% Styreffekt behov. 1,9W Kontaktavstånd: 3mm Provspänning kontakt/kontakt 2000 V och provspänning styr anslutningar/Kontakt 4000V.
- Typ av produkt
- Kopplingsrelä
- Typ
- R12-110-230V
- Anslutning
- Skruvklämma
- Driftspänning (min.)
- 230
- Utlösningsspänning (max.)
- 230
- Kontakttyp
- 1 NC
- Nominell spänning
- 230
- Växelspänning (max.)
- 230
- Växelström (max)
- 16
- Max. bryteffekt
- 2300
- Bredd
- 18.0000
- Höjd
- 55
- Mått.
- (B x H x D) 18.0000 x 55 x 59.0000 mm
- Innehåll
- 1
- Vikt
- 1100
- Djup
- 59.0000
- Mounting method
- DIN rail
- Function
- Other
- Built-in depth
- 55
- Rated current
- 16
- Width in number of modular spacings
- 1
- Control voltage 1
- 230-230
- Type of control voltage 1
- AC
- Frequency control voltage 1
- 50-50
- Voltage type (supply voltage)
- AC
- Max. switching current (cos phi = 0.6)
- 10
- Max. incandescent lamp load
- 2300
- Max. load fluorescent lamp
- 2300
- Max. load fluorescent lamp (Duo circuit)
- 2300
- Max. load fluorescent lamp (parallel compensated)
- 500
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Number of contacts as change-over contact
- 0
